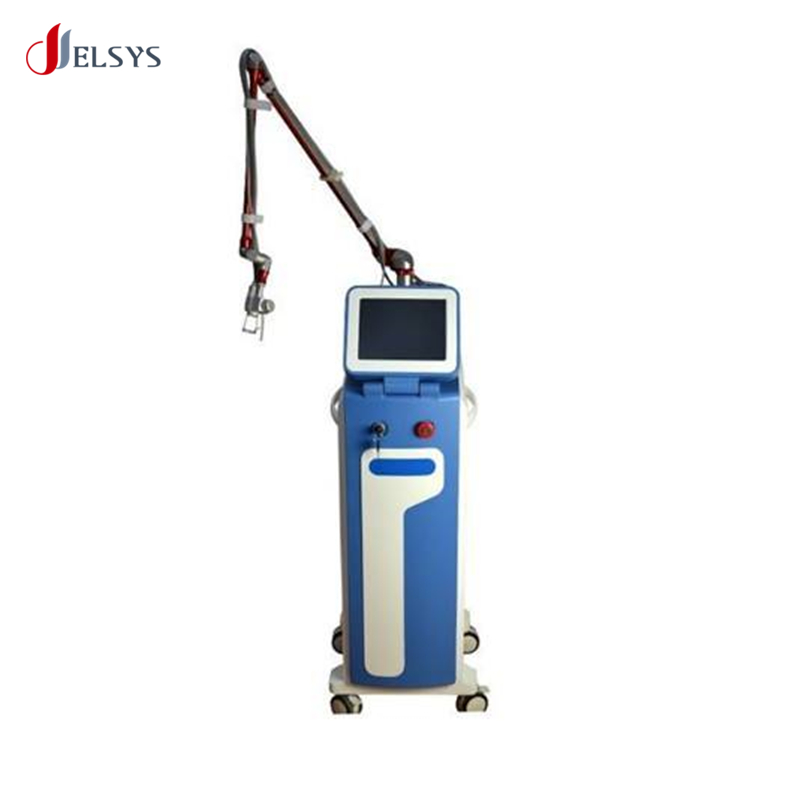

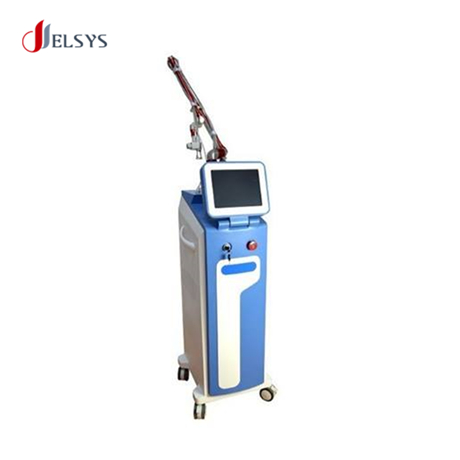

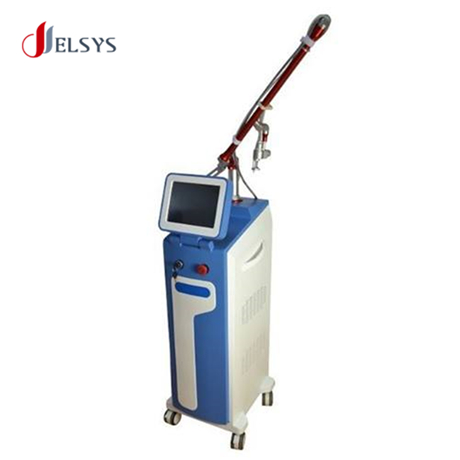

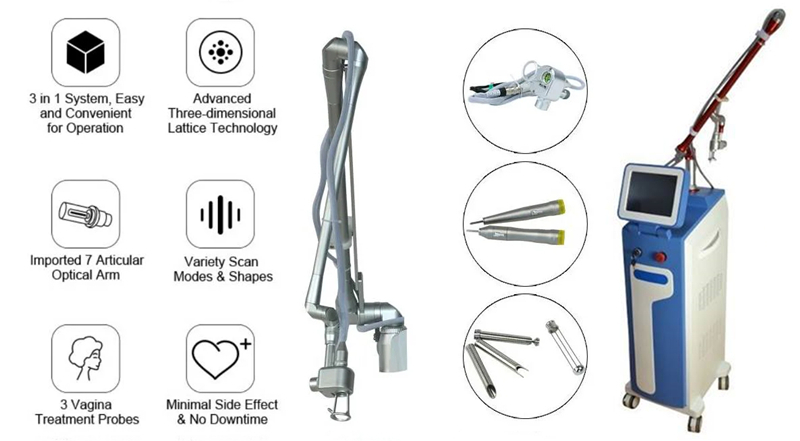

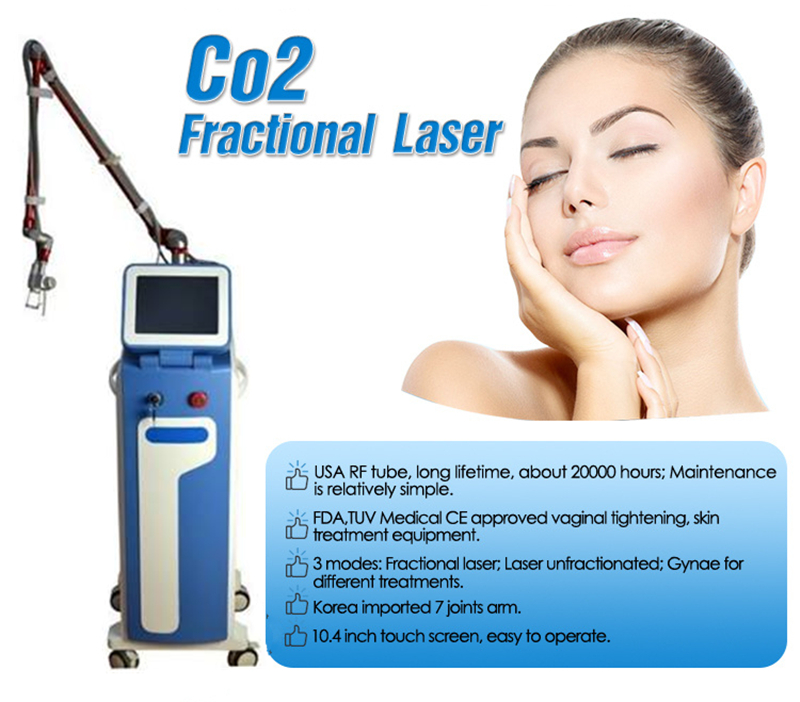

10600nm Co2 Fractional Laser machine

You haven't uploaded the QR code yet.
Please upload the QR code image in the background

Voltage
 110V-240V/50-60HZ
Wavelength
 10600nm
Model JCF-II
Screen
 10.4 Inch LCD Touch Screen
Laser Enitter
 USA Coherent RF laser
Output Power
 60W or 80W
Cooling System
 Air cooling
Fractional Therapy

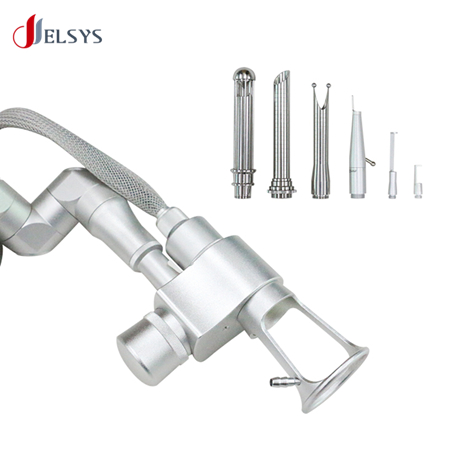

 Fractional,CO2 surgery,Vaginal therapy
Beam Delivery

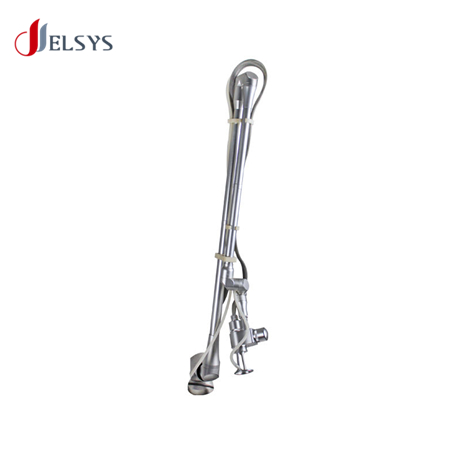

 Articulated 7 joint arm with up to 360° rotation
Working Mode
 Continuous, single pulse, Interval pulse

Scan scope

Max 20mmx20mm

Distance

0.1-2.6mm

Scanning speed

More than 10m/s

Package
 Aluminum Case
Weight 75KG

Quantity:
Inquire Add to Basket

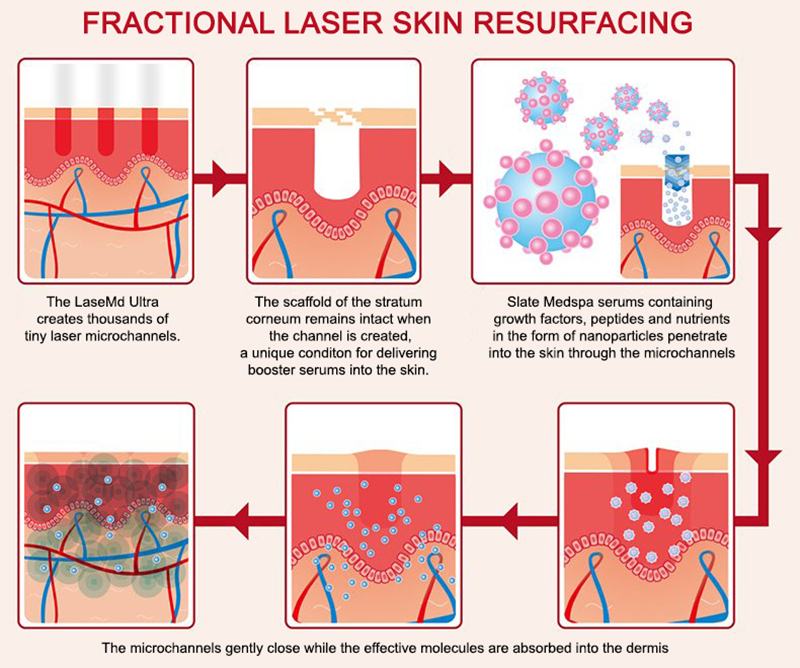

    The Jelsys fractional laser resurfacing is a great device that allows multiple layers of the skin to be removed safely by leaving areas of damage skin next to areas that have been treated by the laser. This is why it's called a fractionated method. Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well.

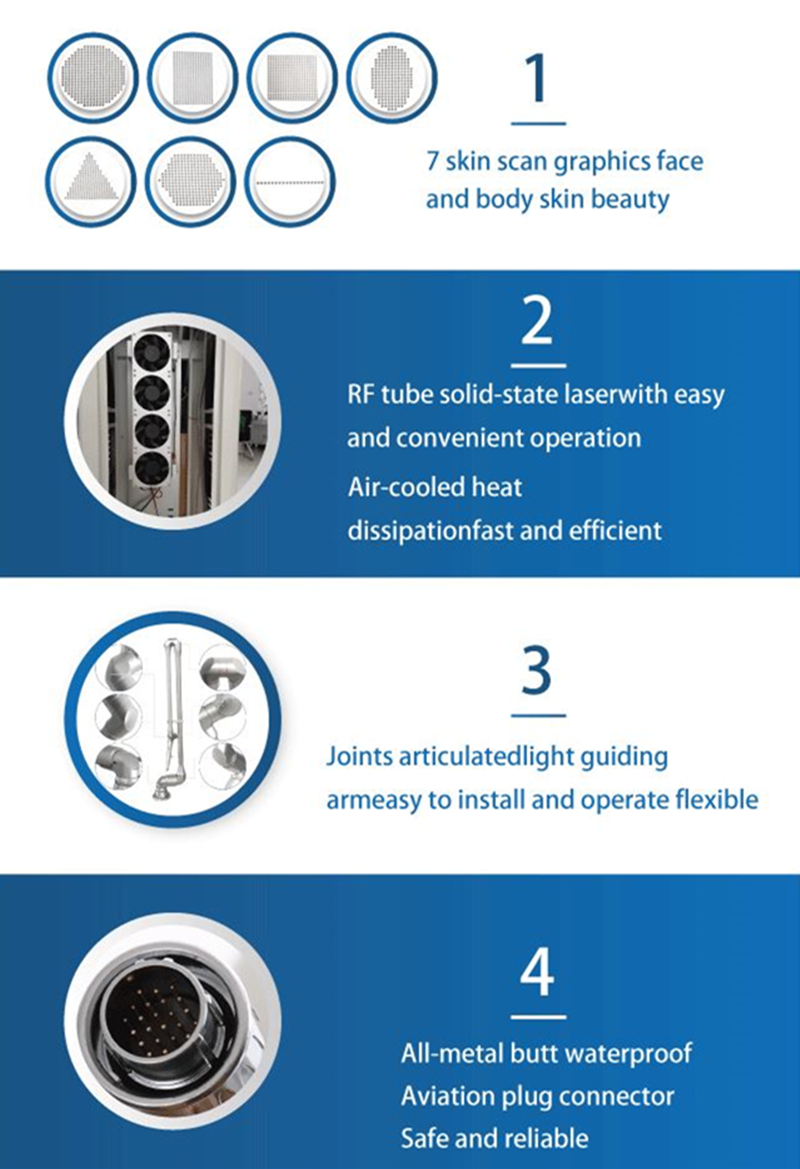

    The RF Co2 fractional laser is a mode of laser emission. The lattice laser is installed with a special image generator (CPG), and the image generator changes the light emission mode. The lattice laser can emit 50μm-80μm through the high focusing mirror. focal spots, and scan these focal spots into up to 7 kinds of rectangular shapes (circle, square, rectangle, diamond, triangle, line), which are suitable for the treatment of different parts and different skin types.
The image generator (CPG) disperses the originally concentrated light spot into tens to hundreds of smaller focal spots, that is, a small amount of thermal damage is separated, so that the normal tissue between the thermal damage is not affected, and this part of the skin can be used as a The area of thermal diffusion avoids possible side effects such as thermal damage, and at the same time promotes the healing process of the skin. This can reduce the thermal damage to the skin caused by the one-time treatment, ensure the effectiveness of the treatment, and reduce the pain of the patient, so that the patient can return to daily life in a shorter time.


Contraindications
1. Those with scar constitution;
2. Patients with severe diabetes and hypertension
3. Mental patients, or those who have high expectations for treatment;
4. Active vitiligo and psoriasis, systemic lupus erythematosus;
5. Pregnancy or lactation;
6. Those who are allergic to light
7. Those who have performed chemical peeling, grinding and other skin resurfacing techniques
8. Those who use retinoic acid drugs
9. Patients who are unwilling to apply sun protection after surgery and accept the risks of grinding



Indications
Fractional lasers can be effectively used for
1. Treatment of acne and acne scars, scars, etc.
2. Removal of fine lines and dry lines around the eyes such as eyelids and crow's feet
3. Effectively improve facial and forehead wrinkles, joint wrinkles and stretch marks
4. Treatment of pigmented lesions such as freckles and zygomatic parent spots
5. Firms and lifts the skin
6. Stretch marks and other deep scars
whitening effect：
Fractional lasers generate heat through the friction of the beam, stimulate collagen production, and firm the skin. Compared with the traditional laser, the pixel laser changes the light emission mode. The action point of each pulsed laser is composed of hundreds of micro-laser pulses, and the area of each micro-laser spot is only tens of square nanometers. On the basis of solving poor skin tone, poor skin texture, melasma, hyperpigmentation, superficial scars, superficial acne scars, large pores, and fine wrinkles, pixel laser can moisturize and firm the skin.
It is a technology that transforms the traditional laser emission mode into a pixel mode. Its microporous pixel pattern reduces epidermal thermal response, making the treatment process easier and more comfortable. Promote the growth of collagen, which can make the repaired skin more delicate and fair. The biggest advantage of the pixel laser is that it can further reduce the excessive thermal damage that may occur during the laser treatment process, reduce side effects, and improve the safety of laser treatment, and there are no obvious adverse reactions after surgery. In addition, the pixel laser can customize the skin care plan according to the skin problems of the beauty seeker, and one course of treatment can make the skin silky smooth, and the skin rejuvenation and whitening can be completed simultaneously.


1. Full wavelength 60W power
Compared with the traditional laser, the fractional laser is more powerful and can reach the deep layer of the dermis of the human face, stimulate the damaged part of the dermal tissue to repair, make the dermis produce more collagen and rearrange it, and have a skin rejuvenation effect. .
2. Treatment without harm

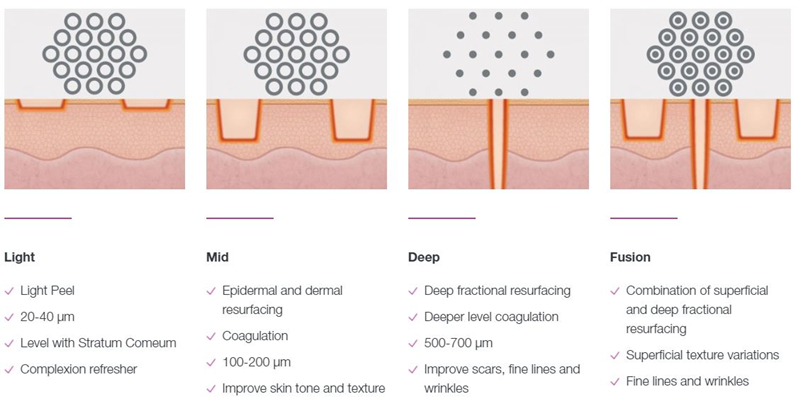

The fractional laser uses a fractional laser system. Using the ablation effect of the laser on the tissue, micro-holes with a diameter of 120-1200 microns can be punched on the skin, and the hole spacing is 500 microns. These micro-holes can be used within one day after treatment. Closure is difficult to see with the naked eye, and exudation, bleeding, and infection are rare.
3. Customized personalized treatment plan
Fractional laser can customize personalized treatment plans according to individual needs. During treatment, the diameter and depth of the micropores can be adjusted. Of all the lasers, only the fractional laser can achieve 5-100% adjustment in the treatment range, and a single treatment can produce significant results.
4. Obtained national security certification
Because the penetrating power of the fractional laser is strong, the trauma is small, and the uniform coverage of the fractional micro-holes is ensured, avoiding the overlapping of the light spots. Therefore, it is the most suitable laser for full face treatment to quickly restore your skin to a smooth image.
5. The skin can recover within 3-6 days
During the treatment, the area where the laser penetrates directly forms a matrix of small white spots. The skin around these small spots immediately starts the lateral repair mechanism, and the epidermis will be completely healed within 8 hours, and you can wash your face and take a bath. In about 3-6 days, the scabs at the small white spots fall off, and the skin returns to its normal appearance. The internal collagen regeneration can take up to 6 months.
