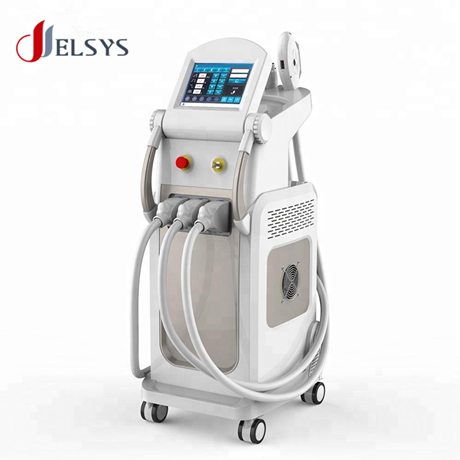

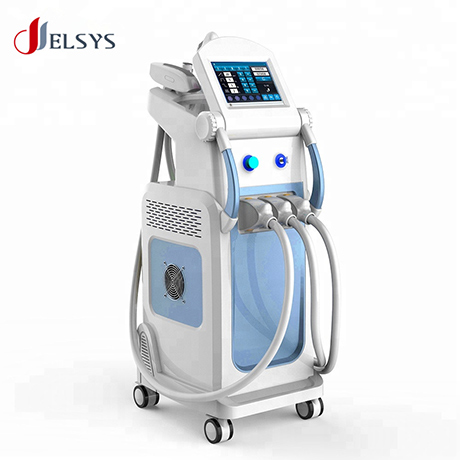

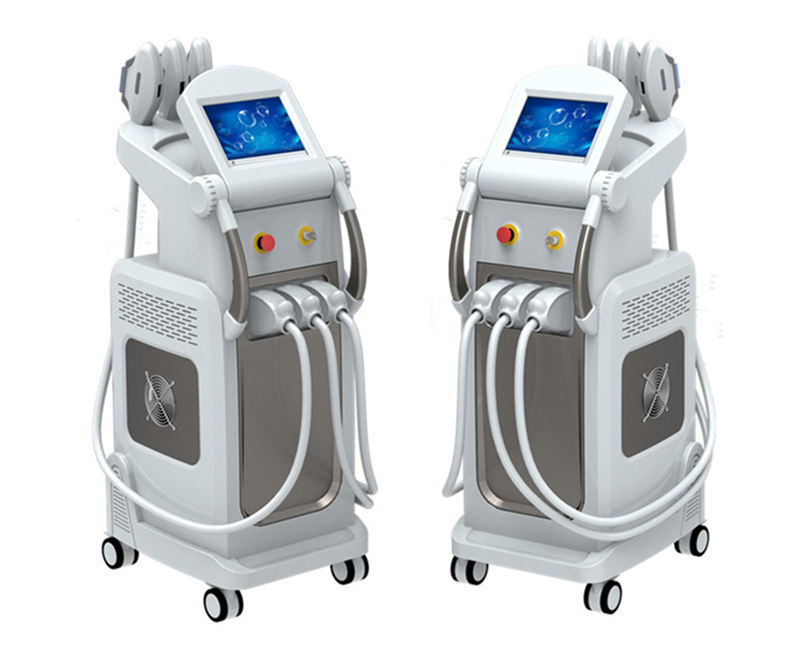

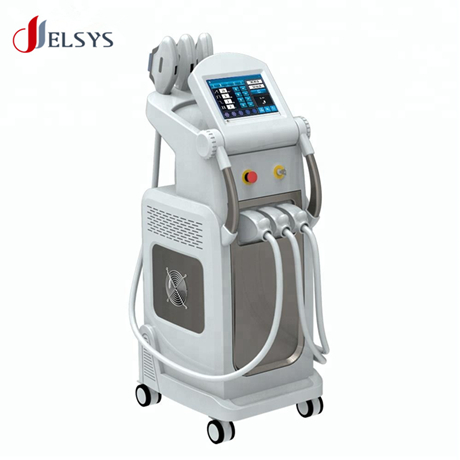

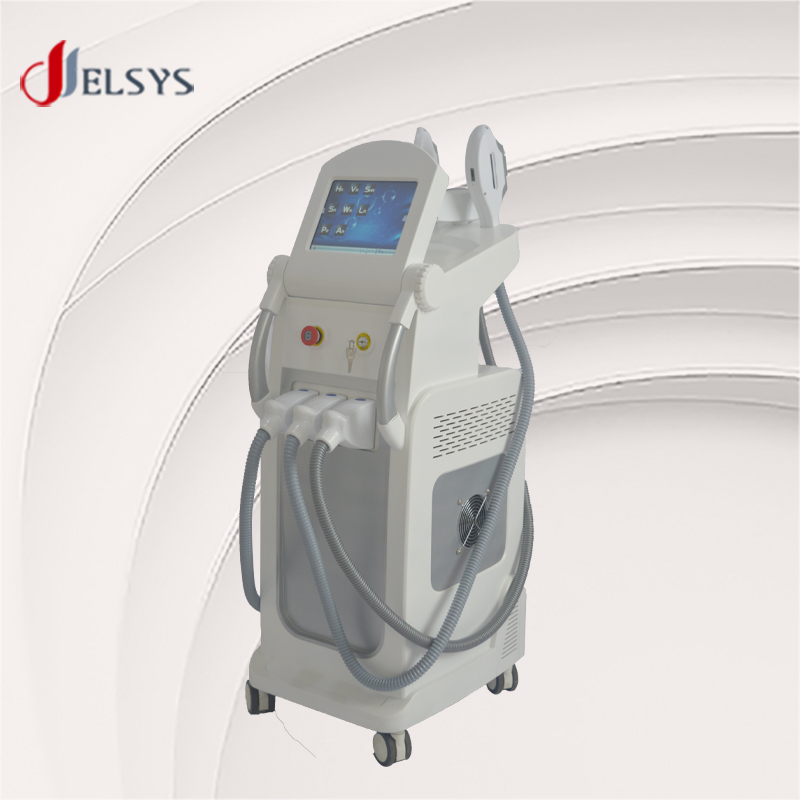

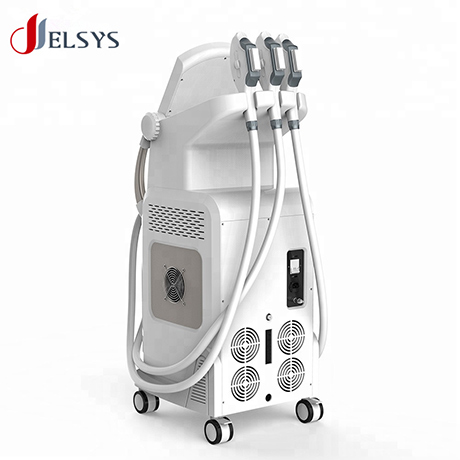

Multifunction IPL SHR + E-light + RF+ ND YAG laser machine

You haven't uploaded the QR code yet.
Please upload the QR code image in the background

Operation Inteface 10.4 inch TFT Screen
Wavelength 610-950nm(HR)  / 1064nm 532nm 755nm 1320nm
Working Mode SHR Working & RF working & yag Laser working
Spot Size 15X50mm; 12X30mm(option for both handles)
Energy    1-26/cm2 (SHR & SSR)
1-50w (RF)
1-1000mj (Laser)
Pulse Width 1-15ms
Pulse Amount 1---6
Handle 1X610-950nm(HR)
1X RF (3 tips)
1X Laser (2 tips)

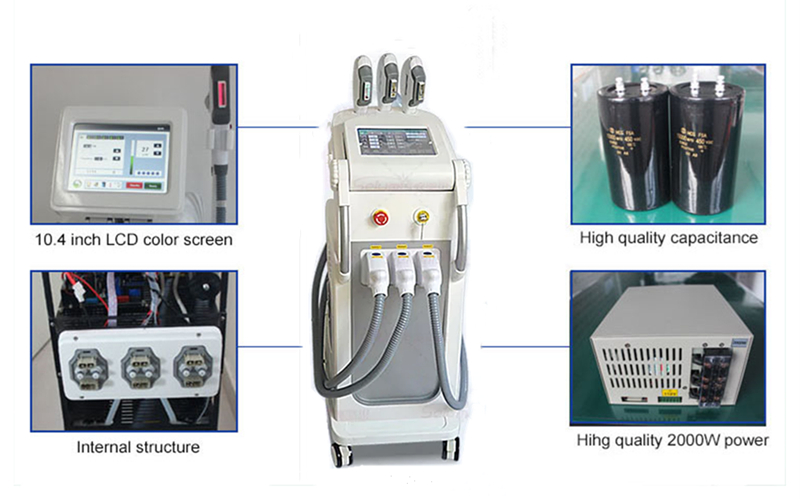

Main Drive Power 2000W / 1Mhz / 1000W
Handpiece lifetime 300,000 shots times for each handle
Weight 75KG
Dimension       136x64x56cm
Quantity:
Inquire Add to Basket

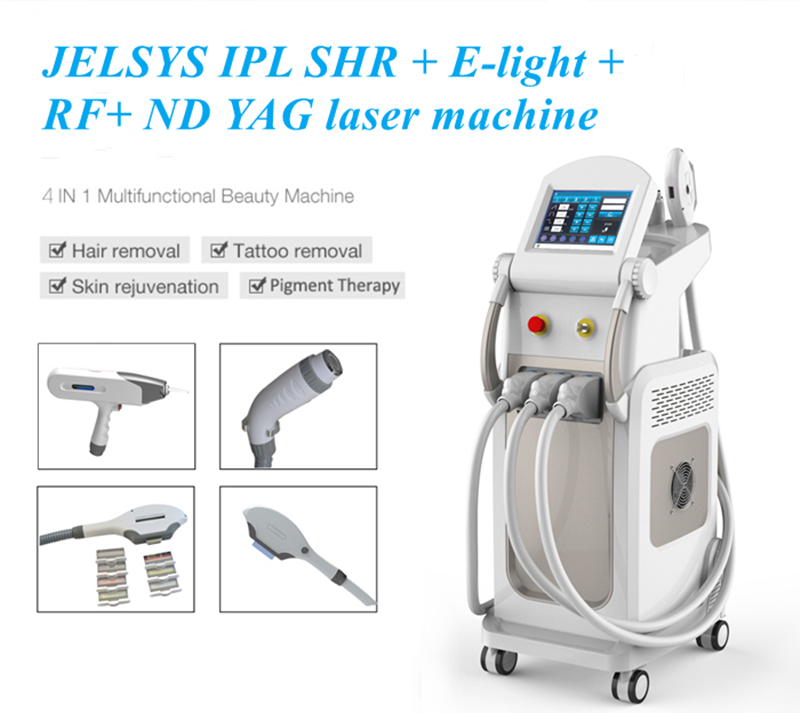

Jelsys Multifunction IPL SHR + E-light + RF+ ND YAG laser machine can choose to beauty machine 3 handles from above 4 handles. Inlcude:
1. SHR IPL handle or E-light handles (filter can opt 430nm,480nm,530nm,590nm,640nm,690nm)
480nm: pigmentation removal, skin whitening.
530nm: vascular removal,acne removal.
640nm: hair removal, include face hair and body hair. inlcude spot light mode and fast hair removal mode.

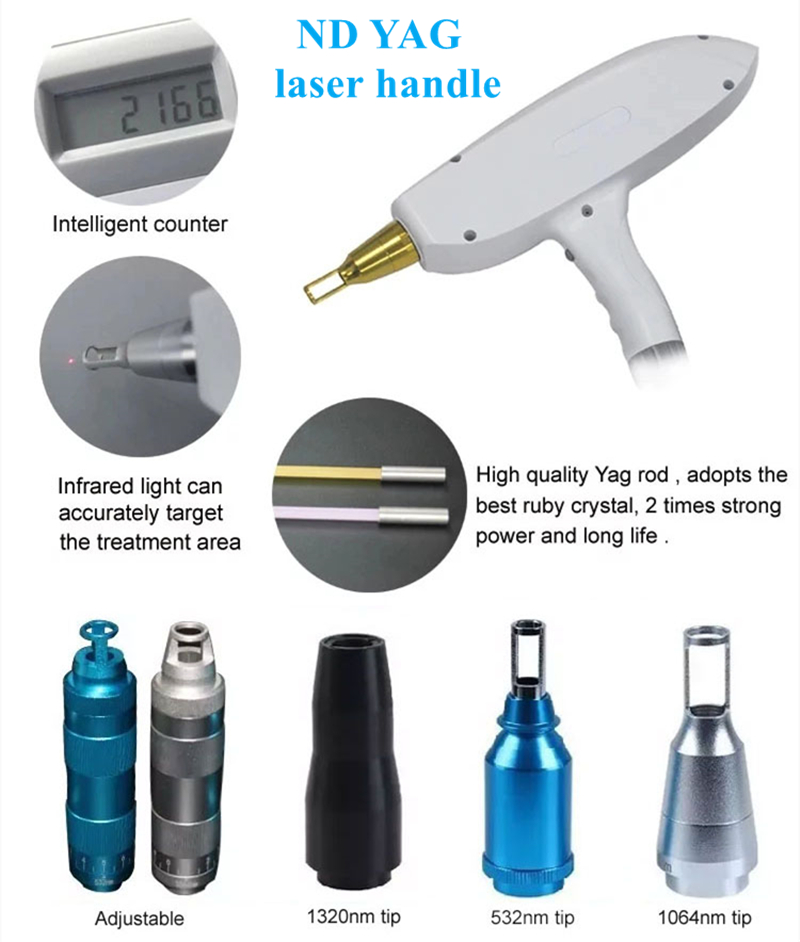

2. ND YAG Laser handle with 1064nm tips,532nm tips,1320nm tips,755nm tips :
1064nm: deep color tattoo removal, such as black color and blue color.
532nm: coloful tattoo removal, such as red, yellow etc colors.
1320nm: carbon peeling skin rejuvenation, shrink pores
3. RF handle: face and body skin lifting and tightening.
4. Diode Laser 808nm handle: professional ice diode hair removal.

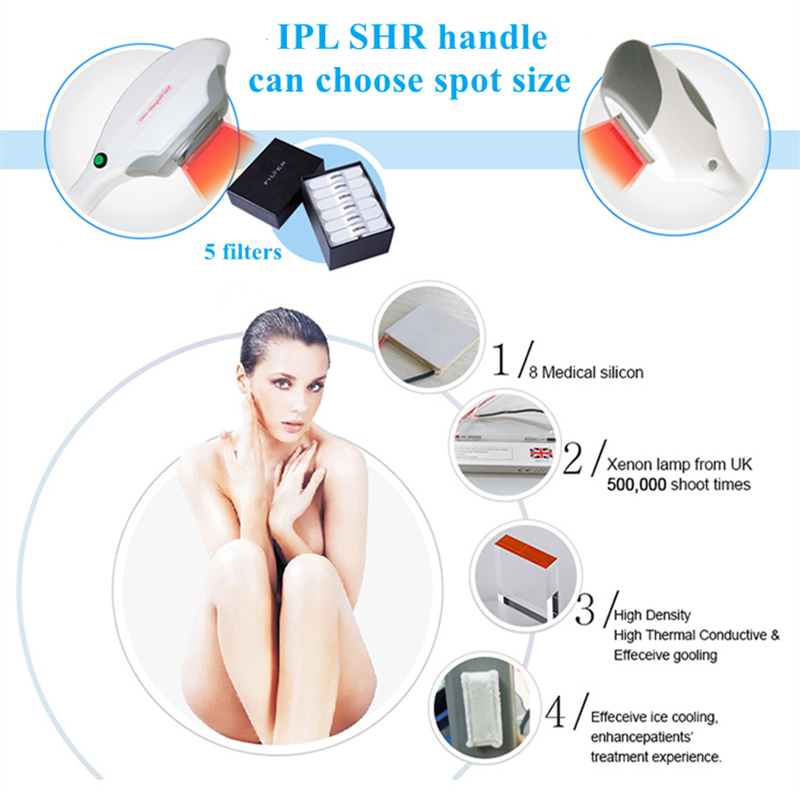

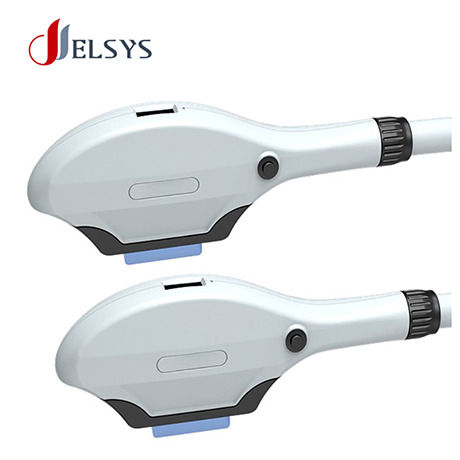

OPT SHR IPL laser handel or E-light laser handel Principle
IPL SHR laser handle combines good traits of IPL laser and Radio Frequency, warms up strong pulse, takes bipolar rf to strengthen acting on deep tissue, uses skin can selectively inhale light energy,to induce different impedance between target texture and normal skin. Under the circumstance of low light energy, it strengthens target texture to inhail radio frequency,greatly eliminate side effect like bleb, pigmentation caused by heat action of light energy filtering. SHR can penetrate skin deep, selectively act on hypodermal pigment, blood vessel, dissolve freckle, close abnormal vein, solve skins all kinds of flaws. Simultaneously.SHR can stimulator hypodermal collagen rebirth, make skin youth, health and smooth.Machine handle emit high energy light,the light reach the derma layer, destroy the hair follicle, stop the hair regrowth.


ND YAG Tattoo Removal laser handle Principle
ND Yag Laser machine adopt the selectively photothermolysis, machine emits high energy laser, this laser can be abosorbed by pigmentations,after abosorbing the energy, the pigmentation tissue will be broken into pieces, which can be metabolized by the lymphatic system or be egested out of the body, the tattoo or pigmentation will be removed .

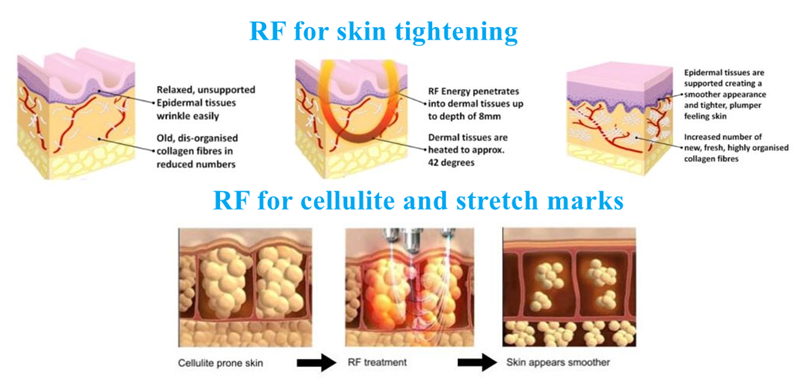

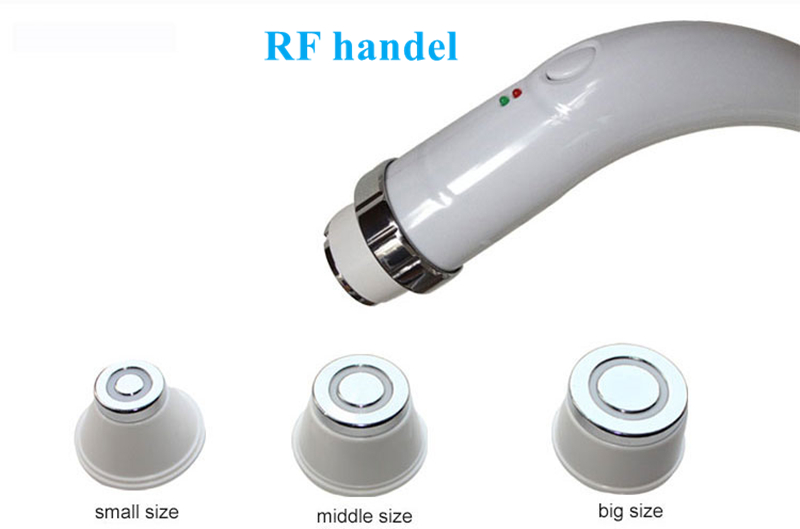

RF Lifting handle Principle
RF handle produce high energy radio wave,this wave can reach the derma, And produce heat,when the temperature is 60-70C, whichstimulate the new collagen regrowth, acheiving skin tightening and wrinkle removal results.

Diode Laser Hair Removal Principle
808nm diode laser machine is particularly effective to hair follicle melanocytes without injury surrounding tissue. The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature.
755nm suitable for light skin hair removal.
808nm suitable for neutral skin hair removal.
1064nm suitable for black skin hair removal.



1. Various choice to customize the beauty machine, you can choose any function that you want to equip the machine according to your demand.
2. Multifunction in one machine, most high cost performance.

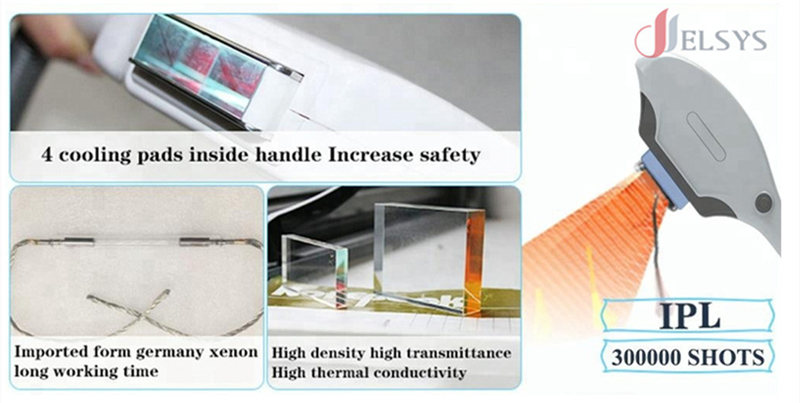

3. Xenon lamp imported from UK, life up to 500,000 times, 200,000 times warranty
4. Super cooling system: air+water+semindector, it can continous working to 12 hours arround.
5. World standard no pain hair removal technology.
6. ABS industry material shell, most hard and safe case.

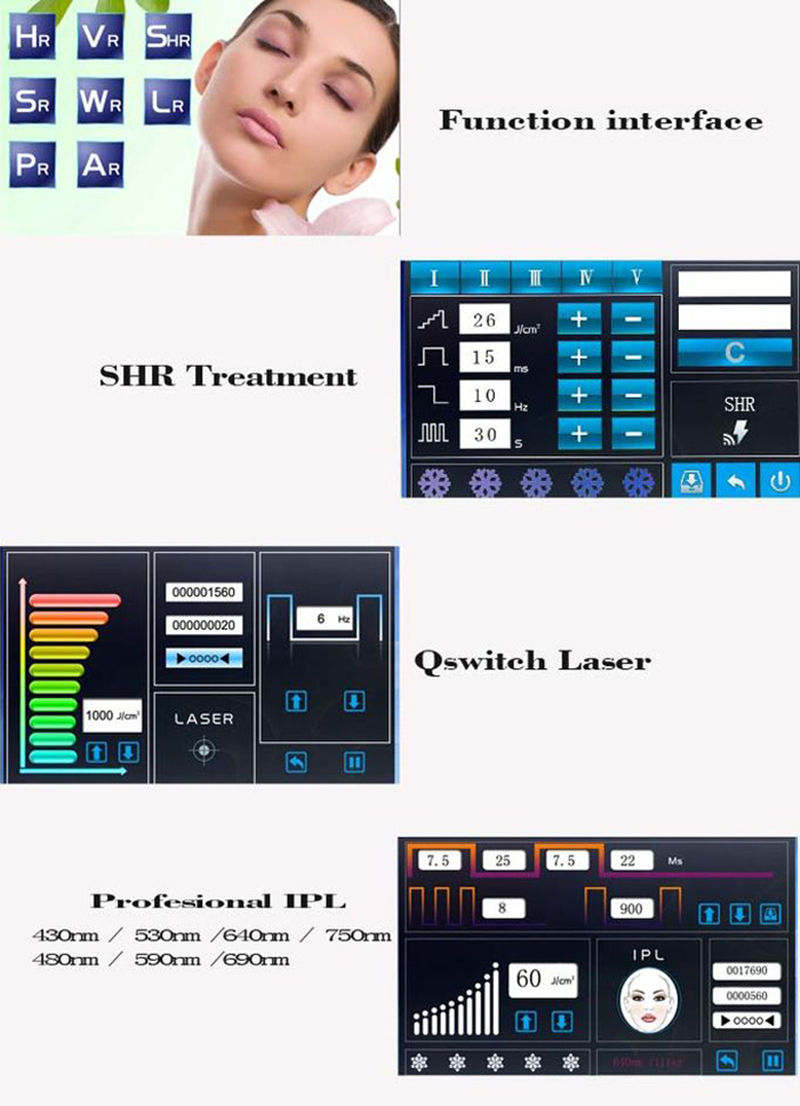

Easy Interface
Our system is very easy to use.
Client only need to follow our system to choose gender and skin tone, hair thickness, treatment area, then our system will automatically offer the pre-set recommended parameters which you can directly use. For this 3rd generation intelligent diode laser, you can also put any tip to the handle then our system will also give you the pre-set parameters.

Alarming System
Machine alarming is machine intelligent self-protection way.
It includes below 5 parts: Water Flow Speed ,Water Tempreture Water Impurity,Water Level,Handle Button Status

Monitoring System
Advanced monitoring system makes after-sales job much easier and much faster. In case there is any problem, client can firstly check the monitoring system to know which part is wrong, then we can immediately send the new part.

Treatment Record Saving System
Save the treatment parameter for client so that next time can directly use.
Our system allows Doctor to save this most suitable parameter for this specific patient to our Treatment Record Saving System. So that next time when this patient come again, Doctor can directly searching for his or her well tested parameters and start treatment quickly.





 Applications

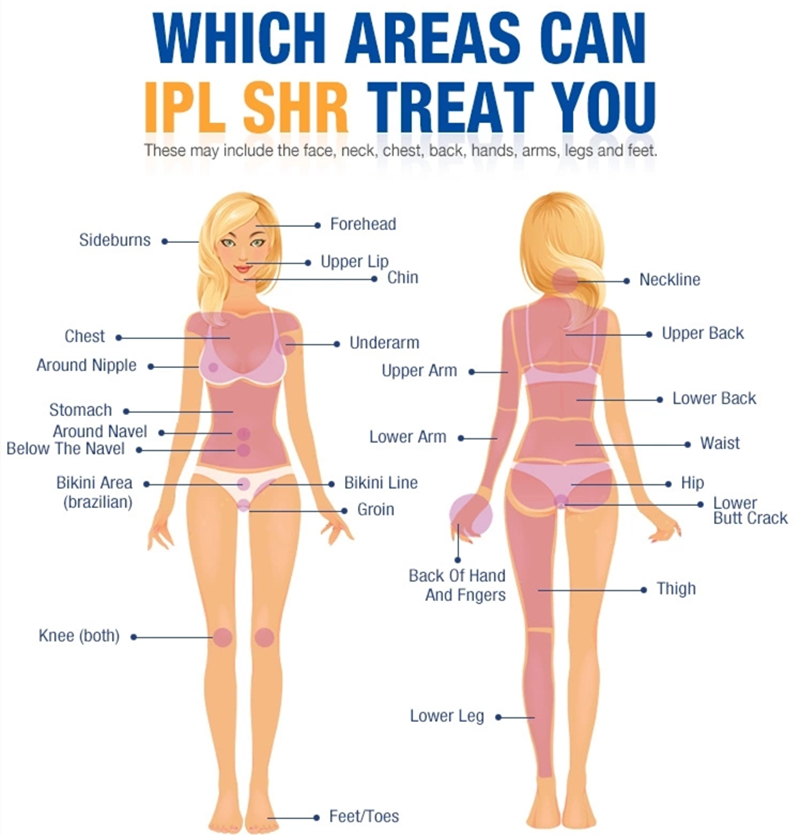

1) Fast hair removal permanently
2) Dark skin hair removal permanently
3) Skin rejuvenation, Wrinkle removal, Skin tightening
4) Pigment removal, Vascular treatment, Acne removal
5) Breast lift up
6) Tattoo removal for different colors,carbon peeling treatment
7) Remove tattoo on lip line, eyebrow, eyelid
8) Acne reduce / Vascular removal

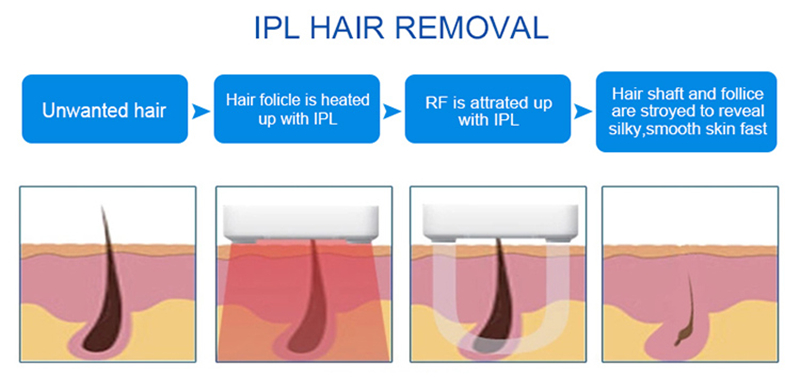

Hair removal of elight ipl shr laser:
1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.
2. Clear treatment area.
3. Turn on machine,
1) Use SHR, adjust pulse width at 7ms, frequency 5HZ, energy 15J/cm2.
2) Use normal hair removal treatment, put the 640nm or 690nm filter into the slot, select "hair removal",adjust the parameter, set it to ‘ready’
4. Put cooling gel on treatment area about 2mm.
5. Wear protect goggles for patient and operator.
6. Shot the treatment area, let the crystal tip to touch cooling gel, You are permitted to have 1/3 overlapping on treatment area.
7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients feel warm or hot, you may put ice bag on treatment area until heat disappear.

Q: The advantage of IPL SHR laser machine hair remove ?
A: It’s fastest, the most efficient, safest, easiest for operation and the most economical.Using to do hair remove, combining the light energy and radio-frequency, which can be worked on the role and dry hair follicle, in spite of the hair color---------even white hair can effectively eliminate.

Q: What is E-Light?
A: It is the first and only technology that simultaneously harnesses the power of bi-polar radio frequencyand optical energy (either laser or light).It can tender skin, remove freckle, remove hair and wrinkle obviously and stably. An E-Light therapy equivalent of 5-10 times of traditional photon therapy. E-Light has three main points: IPL+epidermal cooling.

Q: What kinds of dermatitis can E-Light treat? How’s the effect?
A: E-Light has a wide range of light therapy, almost covers all of the former ones, including: lifting, rejuvenation, hair removal, remove rough skin, tender skin, sunburn,age pigment and freckles etc. Further more, E-Light has more effective treatment on skin, especially on the neck relaxed skin.

Q: E-Light applies to which kinds of people?
A: The people who want to get the following result: Improve the body shape or remove stubbornly cellulite, lift and firm skin. Especially for the ones after liposuction, to accelerate postoperative recovery, compact skin and improve skin condition.
