IPL machine wavelength function

The scientific name of photorejuvenation is Intense Pulsed Light, and traditional photorejuvenation is also referred to as IPL for short. Photorejuvenation is also called "color light rejuvenation", because the light emitted by traditional photorejuvenation is colored. Based on the principle of selective photothermal action, photon energy can be absorbed by the three color bases of hemoglobin, melanin and water. , And then achieve the purpose of curing vascular diseases, pigment diseases and changing skin texture.
1. The wavelength is 500nm-600nm, which is the best wavelength to absorb oxyhemoglobin (HbO2) and reduced hemoglobin (Hb) (the depth of action is also sufficient). Therefore, it has the best effect in treating skin sensitivity, telangiectasia and acne marks.
2. The wavelength is 550nm-650nm, which is the absorption peak of melanin and hemoglobin, and the penetration depth is sufficient. It is very suitable for the treatment of pigmented diseases (freckle) and vascular diseases. It has an excellent effect on skin whitening and brightening.
3. The wavelength is 420-950nm, which can kill Propionibacterium acnes, which causes acne, without affecting the surrounding normal skin tissues, so as to relieve acne inflammation and reduce redness and swelling. It is suitable for the treatment of 2-3 grade acne.
4. The wavelength is 540-950nm, which selectively acts on the melanin and hemoglobin of the true epidermis to decompose pigment groups, close and expand blood vessels, and stimulate collagen regeneration.
5. The wavelength is 570-950nm, the effect is very similar to APT540, but it can rearrange the collagen fibers and elastic fibers in the deep layer of the dermis and restore elasticity, and improve the overall facial complexion and skin.
6. The wavelength is 650-950nm, which can selectively act on the melanocytes of the hair follicle to achieve the hair removal effect. Because laser hair removal is more precise, the advanced Soprano ICE ultra-ice hair removal equipment is used.
7.NIR milk light
It is also the photonic module of Harmony XL PRO. NIR is a kind of near infrared light: Near Infrared Ray, so it is called NIR for short. The wavelength of NIR is 900-1800nm, and its peak power is 1300nm, which can penetrate the middle layer of the dermis.
8. Near-infrared light, the specific wavelength is unknown, which can reach the superficial-middle layer of the dermis.

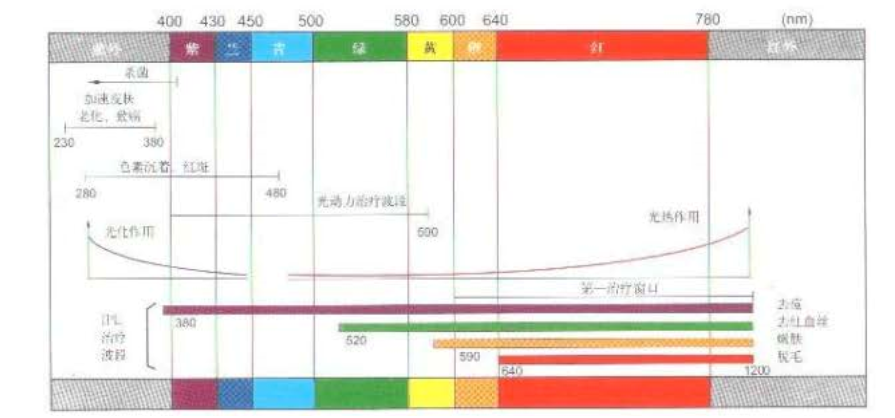

Clinical range of different wavelength ranges:

430------1200nm treatment of inflammatory acne (risk of tanning)

480-----1200nm treatment of acne and vascular disease

530-----1200nm treatment of vascular (superficial small blood vessels) and pigmented lesions

560-----1200nm wrinkle removal, treatment of pigmented and vascular lesions (deep and thick blood vessels)

640-----1200nm hair removal, skin rejuvenation, deep redness

690-----1200nm hair removal, deep redness
