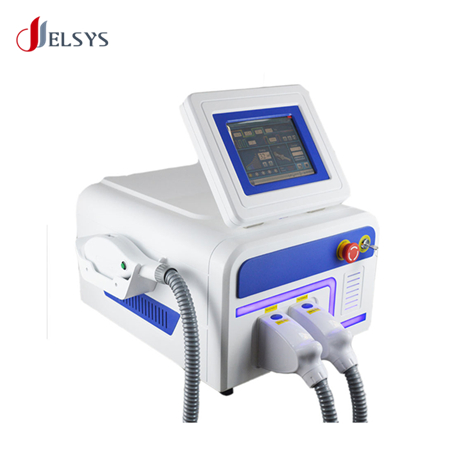

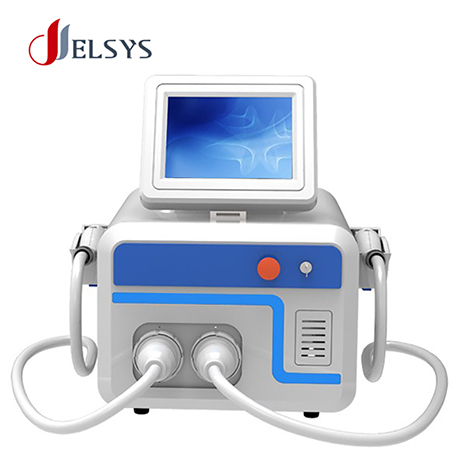

SHR IPL & Yag laser 2 in 1 machine

You haven't uploaded the QR code yet.
Please upload the QR code image in the background

Wavelength (Spectrum) 430-950nm/1064nm,532nm,1064nm
Energy Density (Fluence) 1-60J/cm2 adjustable
Handles Spot Size 15x50mm² & 12x30mm² for option
& yag laser handles with 3 tips
Pulse duration 1-15ms
Pulse  Single
Pulse Repetition Rate 1-10Hz
Timer 1-30s
IPL SHR Power 2000W
Cooling contact cooling + Air cooling +
Closed water circulation cooling
Stand-by Working Continuously for 12 hours
Display 8.4" True Color LCD Touch Screen(Intelligent operation)
Electrical Requirements 100-240VAC, 20A max., 50/60Hz
Weight  42KG
Dimension       65x49x53cm
Quantity:
Inquire Add to Basket

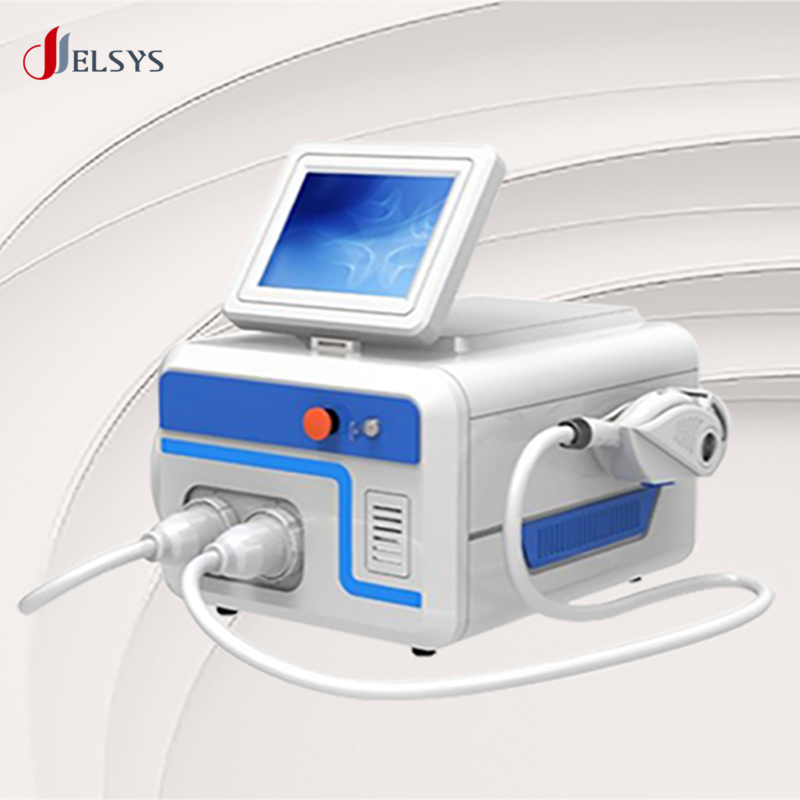

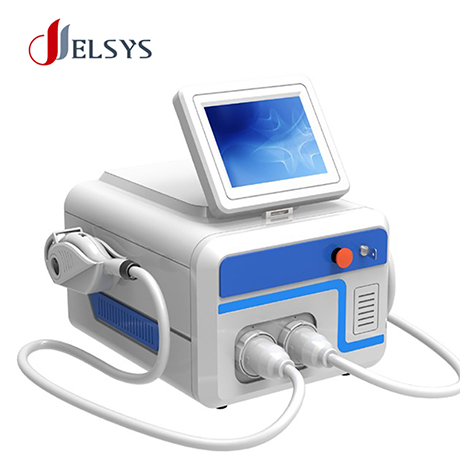

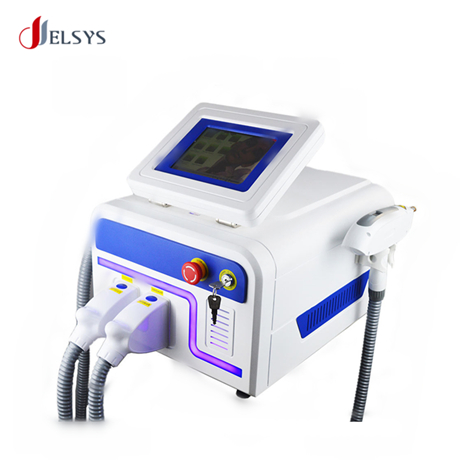

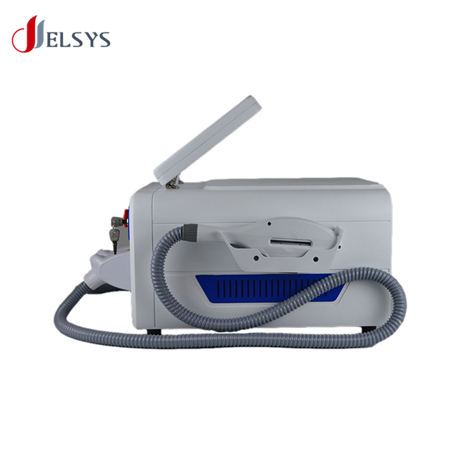

Jelsys SHR IPL & Yag laser 2 in 1 machine is multifunctional hair removal machine,it has ipl handle and ND yag handle main function is hair removal,freckle removal,pigment removal,vescular removal,tattoo removal ,etc.
IPL SHR can emit high engery light, which can reach the derma layer , it can be absorbed selectively by the tissue pigmentation and hemoglobin of vascular, it can make the pigmentation and the expansion capillaries break and explode. Also, this light can break the hair follicle, and stop the hair grow , also, it can stimulate the collagen regrow and make the skin rejuvenation . In a word , ipl machine has the functions of vascular removal , pigmentation removal , hair removal and skin rejuvenation.
Nd Yag Laser can produce high energy laser. The energy laser will be absorbed by pigmentation. It can make pigmentation expand and break and deamed.Most are sent to lymph or swallowed again by phagocyte. Due to the normal call don't abosorb the fixed; more leggth of laser, they cannot break.

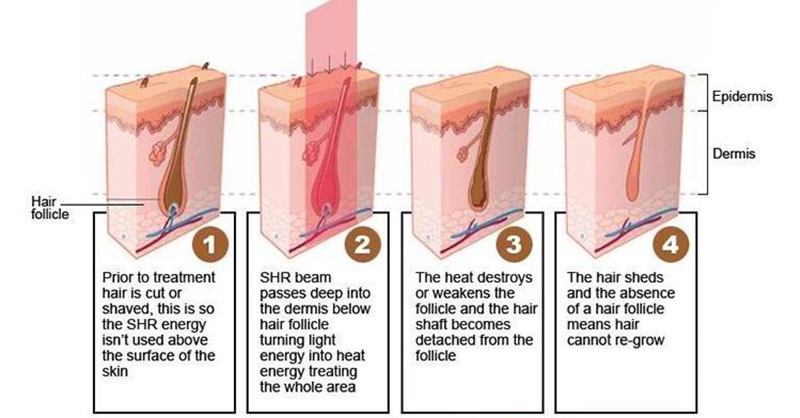

SHR stands for Super Hair Removal, a technology of permanent hair removal which is having a sweeping success. The system combines laser technology and the benefits of the pulsating light method achieving practically painless results. Even hairs which until now have been difficult or even impossible to be removed, can now be treated.The treatment is more pleasant than with the conventional systems and your skin is better protected.
ipl shr system:
Wavelength (Spectrum):420-1200nm
Energy Density (Fluence):1-60J/cm2 adjustable
Spot Size: 15x50mm² (12×30 mm² optional);
Pulse duration:1-15ms
Pulse: Single
Pulse Repetition Rate:1-10Hz

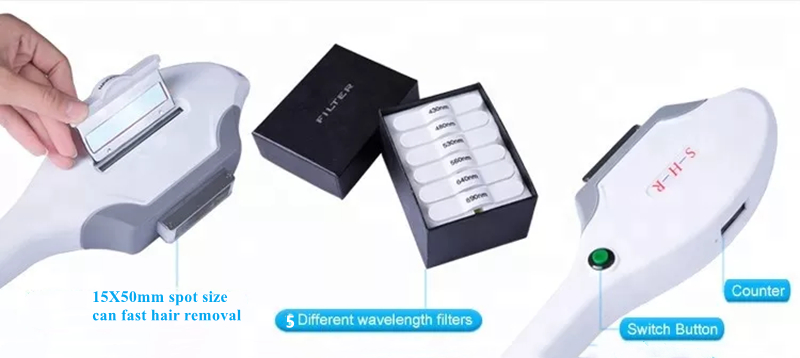

Handpiece number:1pc, with 3 filters
Wavelength:480/560/640nm standard (430nm,530nm,590nm,690nm,750nm optional)
IPL SHR Filter functions:
430nm~1200nm: Acne and pigment removal;
530nm~1200nm: Freckles, vascular lesions and facial blemish removal,
590nm~1200nm: Photo-rejuvenation; whitening and increase the flexibility of skin,regain a glossy appearance;
640nm~1200nm: Hair removal and wrinkle removal;
690nm~1200nm: Hair removal
480nm~1200nm: Acne and pigment removal;
750nm~1200nm: Hair removal

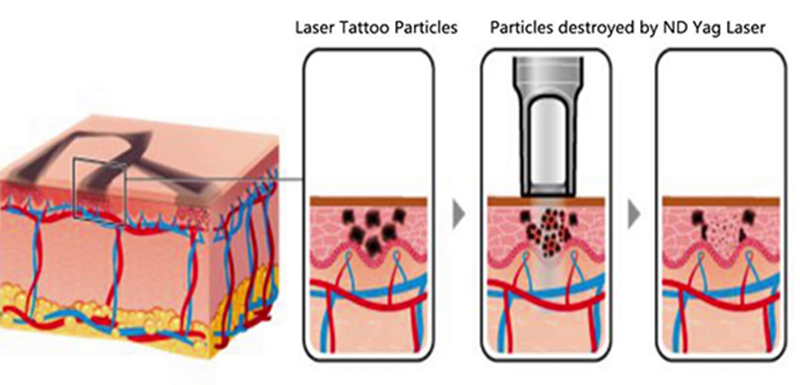

1064nm and 532nm Remove spots and tattoos: Certain laser wavelengths affect melanin ,Epidermis and dermis. The pigment will begin to expand and explode into tiny particles.Absorbed this high-energy laser. Some of them will be shot out of the body, the rest Metablism will gradually remove.
1320nm carbon peeling Tighten the skin and shrink large pores: Apply certain fine carbon to the face, after absolute penetration In the pores, then shooting, it is easy to break the carbon particles, thus breaking the spots and cutin.The epidermis. The heat stimulates the regrowth of collagen, which tightens the skin and contracts the pores.

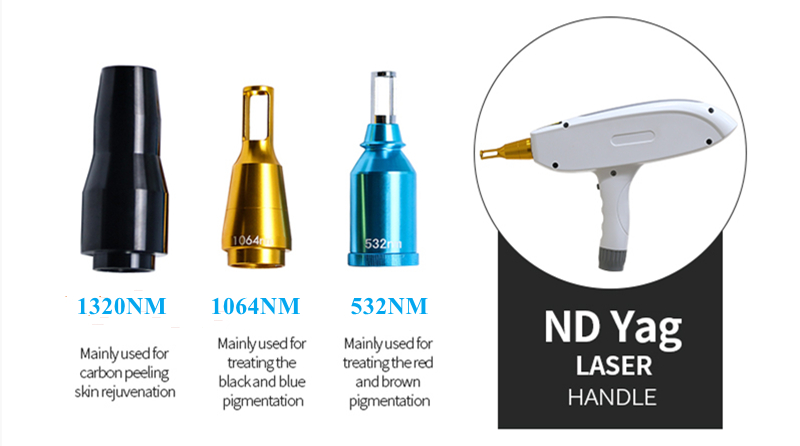

ND YAG laser:
Laser type: ND YAG Q-SWITCH LASER
Wavelength: 1064nm/532nm (1320nm for skin rejuvenation optional)
Infrared aim light: infrared ray indicator
Energy: 1000mj
Cooling: contact cooling + Air cooling + Closed water circulation cooling

How does carbon peeling laser works?
A carbon peel is a revolutionary laser treatment that is completely painless with minimal-to-zero downline,it is highly beneficial for people with oily skin,blackheads,enlarged pores,dull skin and acne on the face or body ,it is also an excellent way to exfoliate and refresh you skin, providing an instant refreshed apperance and leaving skin peeling softer , smoother and firmer.



 Advantages:

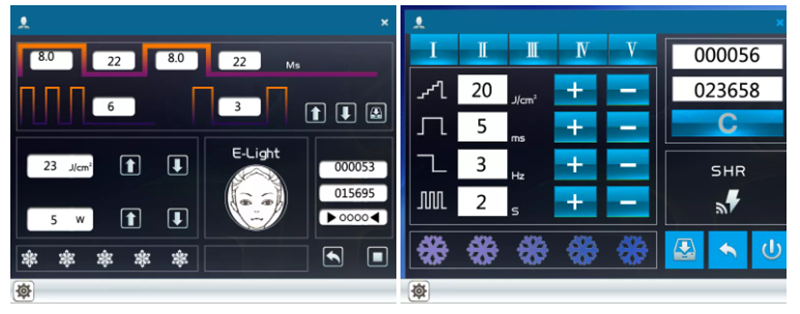

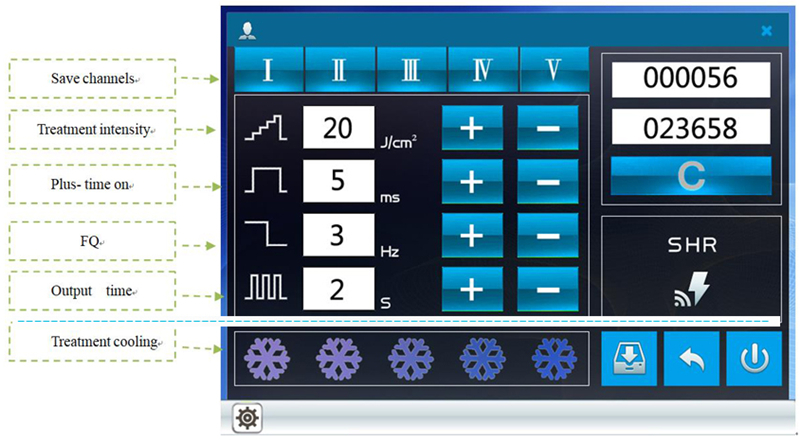

1. Intelligent operating system, easier and more convenient to operate，huge color touch screen.
2. Combining three technologies, intense pulsed light, radio frequency and laser, having more complete functions.
3. Latest plug and play butt joint, separate water and electric design, more secure and easy to install.
4. Perfect combine of large capacity stainless steel tank and industrial radiator, it provide water cycle cooling system which satisfies customers’ continuous treatment demand.
5. 16 operating languages suit to different countries.
6. Water flow and temperate self- testing system and self-correcting system to guarantee safe operation.


Start with a low fluence (i.e. 15 J/cm 2 ). Do a test shot in an inconspicuous area. Evaluate patient response then gradually increase the fluence by increments of 3-4 J/cm 2 when a fluence of around 30 J/cm 2 is achieved, increase by increments of 1 or 2 depending on patient’s response. We strongly recommend that for the 1st treatment, the fluency level be set initially at least 8 to 10 joules/sq cm. below the suggested level of treatment parameter sheet.
Please note that treatment over bony areas such as the malar area, forehead and shins produces more discomfort so reduce the fluence by 2-3 joules. When treating very densely pigmented areas reduce fluence by 2-3 joules.



Applications of IPL and yag laser machine :
1. Smooth wrinkles, face-lifting
2. Deep flecks, epidermis flecks or pigment treating the telangiectasis
3. Promote collagen to grow, strengthen flexibility of skin
4. Acne treatment
5. Shrink the thick pore
6. Removal light-colored or dark and thick extra hair
7. For endogenous pigment: nevus of Ota, coffee spot, age pigment, freckle etc removal
8. For exogenous pigment: tattoo, eyeliner and eyebrow removal
9. Skin whitening,carbon peeling treatment
